Description
game gear ips screen For Sega GG LCD Highlight Screen Kit 3.5" 640*480 Retro Pixel HD IPS B – Hispeedido StoreProduct Feature: For Sega GG LCD Highlight Screen Kit 3. 5" 640*480 Retro Pixel HD IPS Backlight LCD display For Game Gear Console TV HDMI Output It is only a LCD kit. The console and game card are not included. The glass screen lens is included. This LCD kit is compatible with SEGA GG, SMS and SG 1000 games. NOTE: There are two version LCD MOD kit in this advertising listing. 'Without HDMI version' and 'HDMI version'. The 'without HDMI version'
Product Feature:
For Sega GG LCD Highlight Screen Kit 3.5" 640*480 Retro Pixel HD IPS Backlight LCD display For Game Gear Console TV HDMI Output
It is only a LCD kit. The console and game card are not included.
The glass screen lens is included.
This LCD kit is compatible with SEGA GG, SMS and SG-1000 games.
NOTE: There are two version LCD MOD kit in this advertising listing. 'Without HDMI version' and 'HDMI version'.
The 'without HDMI version' doesn't require trimming the shell.
The 'HDMI version' requires trimming the shell.
1. Support Sega single chip motherboard and dual chip motherboard:
--Single chip motherboard:1 ASIC PCB revisions 837-9130 / 837-9024 / 837- 8560
--Dualchip motherboard:2 ASIC PCB revisions 837-7996 / 837-7719-01 VA0/837-7398-03
NOTE 1: Doesn't supported: Majesco Game Gear VA4 / VA5 !
NOTE 2: The motherboard with the "MADE IN TAIWAN" logo on the motherboard of the game console does not support.!
Description:
1. 640x480 display resolution. HD IPS LCD.
2. Same display size as the original screen.
3. Wide View angle up to 178 degree.
4. Built-in OSD Menu!
5. Retro pixel Effects: Normal, Retro pixel, Scanline 1 and Scanline 2.
6. High brightness, 15 brightness levels.
7. 8 color modes.
8. Built in 3 LCD Aspect Ratio.
9. Image position adjustable. No worry to aligning the LCD screen.
10. 720P HDMI-Compatible Output. Support to play games on TV Set.
11. Built in 3 TV Aspect Ratio.
12. FPC connect cable design. Simpler wiring and easier installation.
OSD Menu Operation:
-Press the START+1+2 buttons for 1 second to activate the OSD Menu.
-Press the 'START' button to select the adjustment item when OSD Menu activated.
-Press the '1' or '2' button to adjust the item when OSD Menu activated.

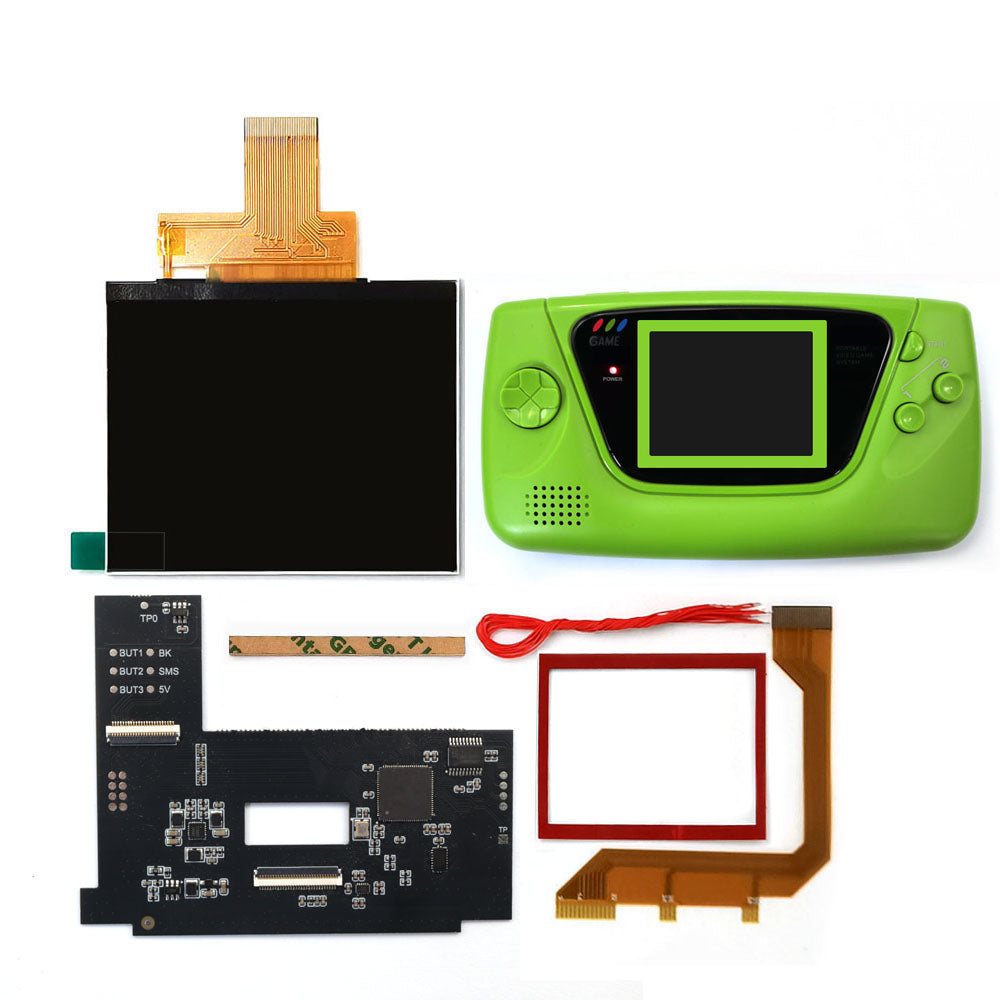

Packing including :
'Without HDMI version' include:
1xBacklight LCD.
1x Without HDMI version PCB.
1x FPC connect cables.
1xDouble-sided tape.
5x 10pF capacitors.
2x 200Ohm resistor
Several Red wires.
1x Glass screen lens.
'HDMI version' include:
1xBacklight LCD.
1x HDMI version PCB.
1x FPC connect cables.
1xDouble-sided tape.
5x 10pF capacitors.
2x 200Ohm resistor
Several Red wires.
1x Glass screen lens.
1x HDMI adapter cable
